Home > Paper Processing Machinery >

PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine

Shanghai Printyoung International Industry Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

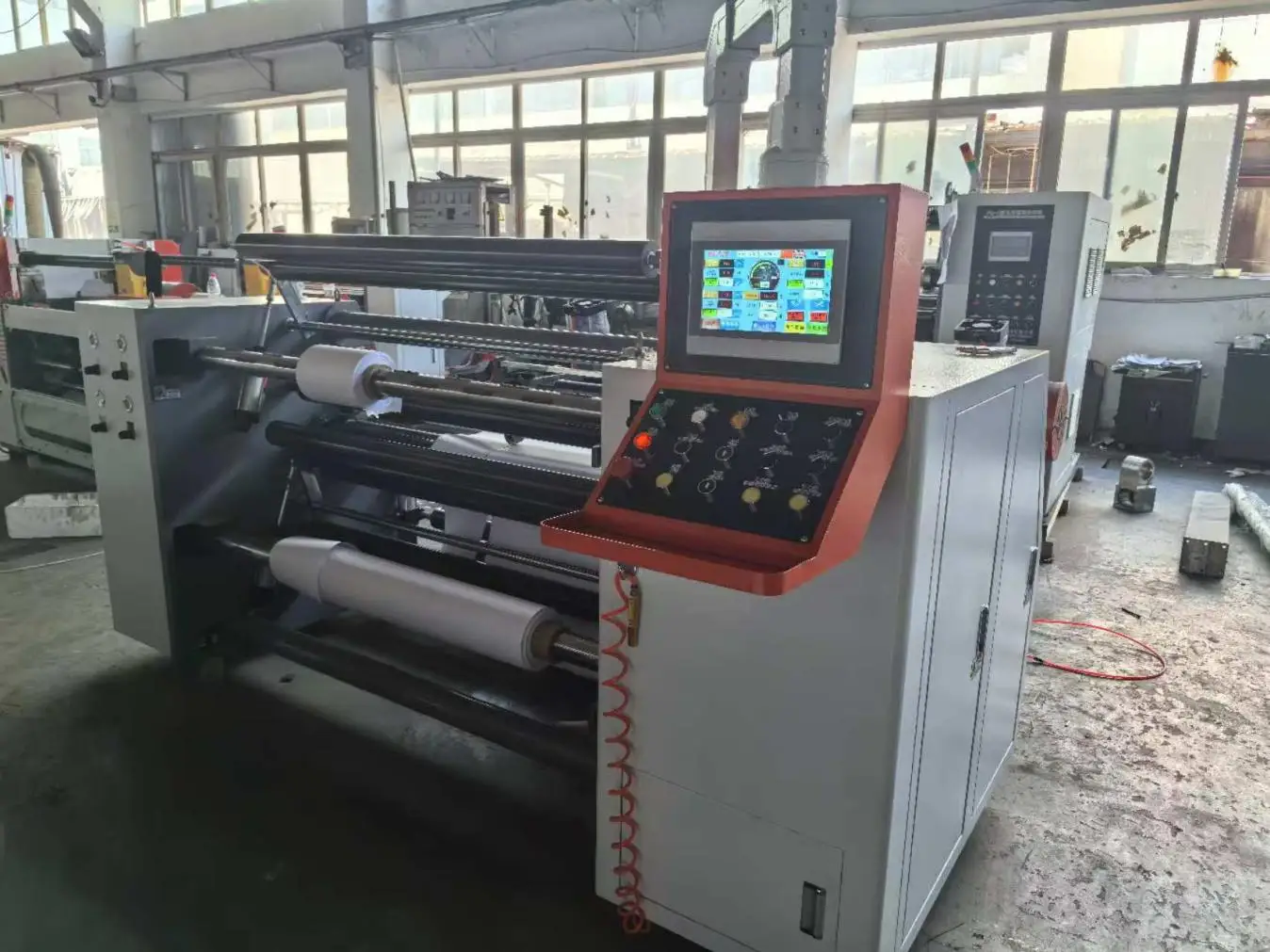

PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine

Brand Name : PRINTYOUNG

Model Number : PRY-1700C

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 26500 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 30 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Model : PRY-1700C

Max Width of Unwinding : 1700 mm

Max Diameter of Unwinding : Φ 1400 mm (3-6”)

Min Width of Slitting : 30 mm

Max Diameter of Rewinding : Φ 600 mm (3 inch)

Max Speed : 200 m/min

Total Power : 21 kw

Power Supply : 380V 50Hz

Weight : 3800 kg

Overall Dimension : 5000 * 2400 * 1800 mm

Contact Now

PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Slitting Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
Technical Parameters
PRY-1700C Automatic High Speed Slitting Machine
Model
PRY-1700C
Max Width of Unwinding
1700
Max Diameter of Unwinding
Φ 1400 mm (3-6”)
Min Width of Slitting
30 mm
Max Diameter of Rewinding
Φ 600 mm (3 inch)
Max Speed
200 m/min
Total Power
21 kw
Power Supply
380V 50Hz
Weight
3800 kg
Overall Dimension
5000 * 2400 * 1800 mm
Configuration
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding MachinePRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine

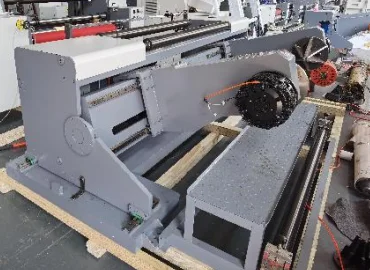

Unwinder

Seperate Hydraulic shaftless loading system
* Maximum loading diameter:1500MM
* Suitable for 3”-12” paper core
* Automatic loading up and down
* Support 3 ton

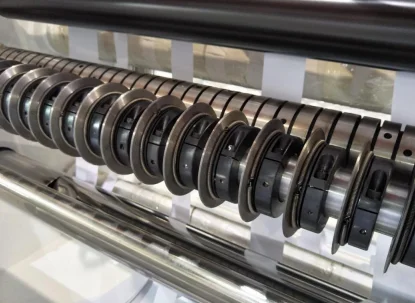

Slitting Knife

* Razor blade forpaper
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding MachinePRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine

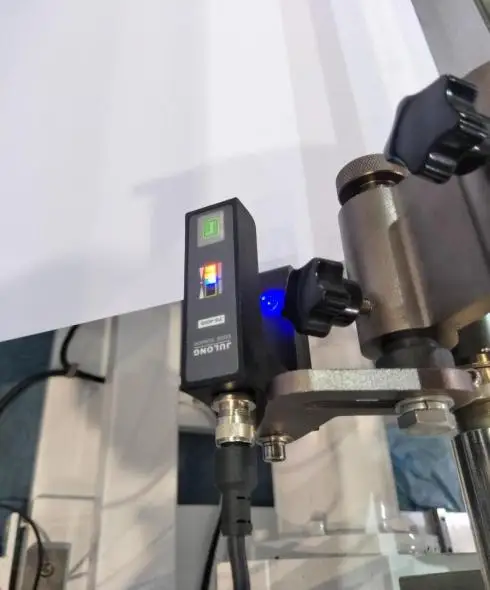

EPC System

Can automatically tracking the line of the paper for slitting in perfect paper edge.

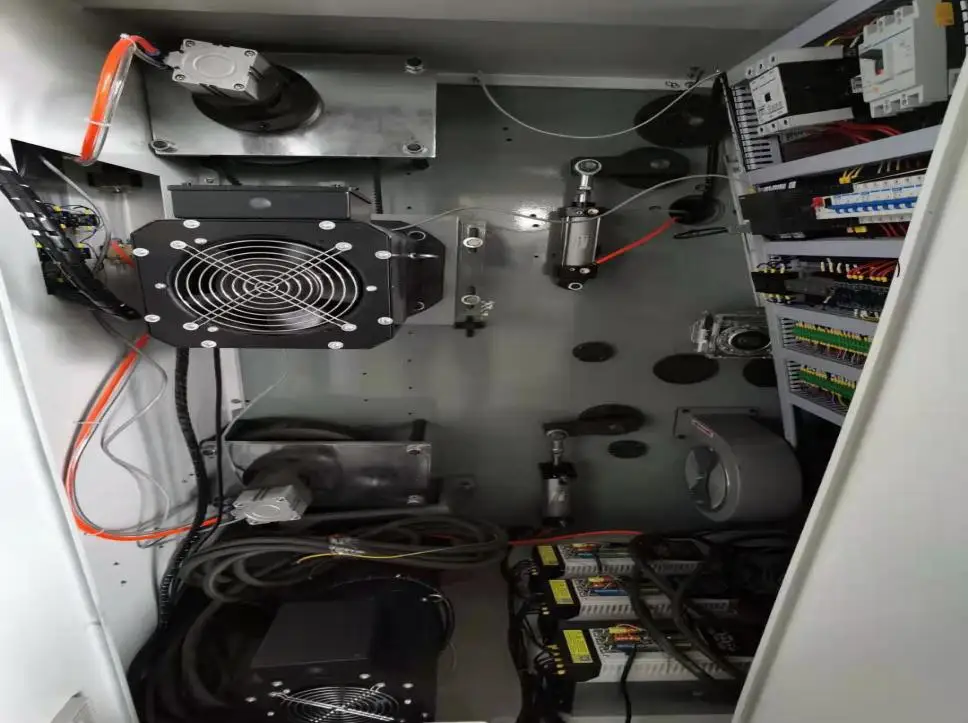

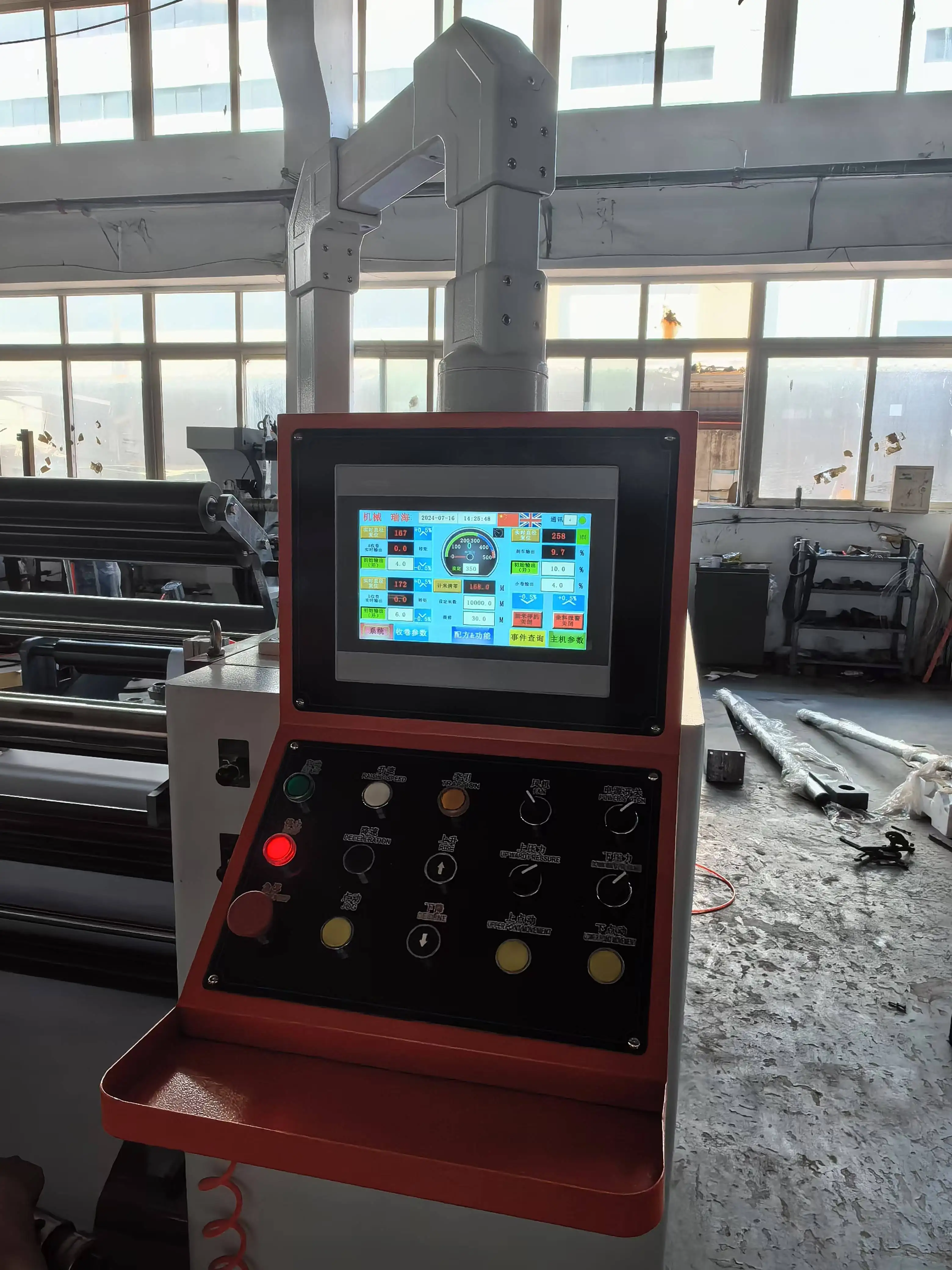

Control System

* Siemens PLC control system
* Touch screen with chinese and english version
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding MachinePRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine

Rewinder

* With 2 unit of 3 inch rewinding air shaft

Three Servo Motor Control

Applications
This machine is used for slitting and rewinding various large rolling materials such as film, hot stamping foil,plastic,PVC,PET,paper (30g/m2~500g/m2 non-carbon paper,capacitance paper,kraft paper),laminated material,double-face adhesive tape,coated paper,etc.
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
PRY-1700C Automatic High Speed Thermal Paper Roll Slitting and Rewinding Machine
Q1.Are you a manufacturer or a trading company?
A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.
Q2.What is the machine warranty?
A:One year.After the warranty,we still provide technical support to buyer at low cost.
Q3.What is the production time while placing order?
A:Normally about 10-20 days.
Q4.What is the delivery time?
A:15-30days after deposit.
Q5.Can your company handle shipping for customers?
A:Yes,just give us destination sea port or container yard.
Q6.Does the packing strong?
A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.
Q7.How about the machine installation and training?
A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.
Q8.Do you have machines in stock?
A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.
Q9.How can you assure the machines’ quality?
A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.
Q10.Do you inspect machines or test running before packing?
A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.
Q11.What’s the payment term?
A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.
Q12.Do you accept factory visiting?
A:Warmly welcome for your visiting.
Q13.How many years are you in printing field?
A:The Shanghai company since in 2008,the factory is more than 25years.
Q14.How many clients do you have?
A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
