Automatic Flatbed Paper Die Cutting Machine 1550mm Pre Stacking

Name: Automatic Flatbed Paper Die Cutting Machine 1550mm Pre Stacking
Brand: PRINTYOUNG
Price: 1 USD

Buy cheap Automatic Flatbed Paper Die Cutting Machine 1550mm Pre Stacking product

Brand Name : PRINTYOUNG

Model Number : AEM-1080B

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 4 Set/Sets per Year

Delivery Time : 90 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Max paper size : 1080 x 780 mm

Min paper size : 400 x 330 mm

Max cutting size : 1075 x 770 mm

Die frame inner size : 1100 x 790 mm

Cutting plate size : 1080 x 780 mm

Min gripper edge size : 7 mm

Cutting precision : ≤±0.1 mm

Max cutting pressure : 300 T

Max cutting speed : 7000 S/H

Pre-stacking height : 1550 mm

Delivery stack height : 1400 mm

Application : Cardboard:0.1～2 mm Corrugated paper: ＜4 mm

Main motor power : 11 KW

Total power : 17.8 KW

Dimension : 4880(+1650) x 2100(+1600) x 2350 mm

weight : 14 T

Contact Now


AEM-1080B Automatic Flat Bed Die Cutting Machine


Features

★ Complete design, accurate installation, high stability, high security, low noise.
 ★ Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
 ★ High precision interval mechanism, high cutting precision, running steadily.
 ★ Adopt European feeder, suction adjustable, steadily, precise, good paper applicability.
 ★ Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
 ★ Automatic pressure adjust system, pressure digital display.
 ★ Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
 ★ Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
 ★ Front lay, side lay, feeding device fine tuning device, paper positioning more accurate,
 ★ Double, crooked, no-sheet optoelectronic position control, ensure the paper in the right position, reduce waste.
 ★ Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
 ★ Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
 ★ Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
 ★ Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.
 ★ (Optional)5+2mm thin plate system, reduce the makeready time.

Technical Parameters

AEM-1080B Automatic Flat Bed Die Cutting Machine
Max paper size	1080 x 780 mm
Min paper size	400 x 330 mm
Max cutting size	1075 x 770 mm
Die frame inner size	1100 x 790 mm
Cutting plate size	1080 x 780 mm
Min gripper edge size	7 mm
Cutting precision	≤±0.1 mm
Max cutting pressure	300 T
Max cutting speed	7000 S/H
Pre-stacking height	1550 mm
Delivery stack height	1400 mm
Application	Cardboard: 0.1～2 mm Corrugated paper: ＜4 mm
Main motor power	11 KW
Total power	17.8 KW
L(+ pre-stacking)x W(+ platform)x H	4880(+1650) x 2100(+1600) x 2350 mm
Weight	14 T

Configuration

Automatic Flatbed Paper Die Cutting Machine 1550mm Pre Stacking

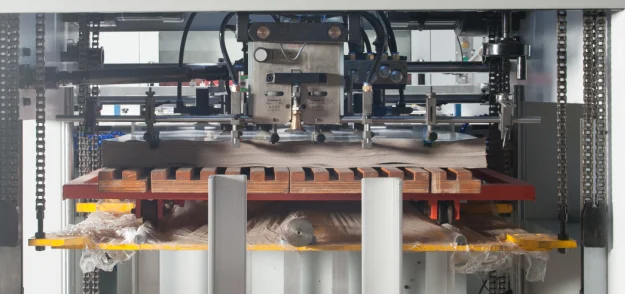

Feeding Section

★European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of
 suction nozzle according to the paper distortion.
 ★Double side lay (pull and push).
 ★Feeding device fine tuning, non-stop adjust.
 ★Electronic double sheet detector.

★Main, secondary feeding device no-stop switch.
 ★Wear-resisting PU pressing wheel.
 ★Dual purpose loader.
 ★Feeding time fine tuning device.
 ★Additional carriage rod 1 set, carriage plate 2 set.
 ★pre-stacking device 1 set.

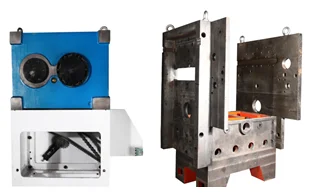

Host Machine Section

★Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
 ★Alloy crankshaft with special process treatment.
 ★Wear resisting worm, worm gear.
 ★Convenient die flipping device.
 ★High precision intermittent device.
 ★Pneumatic clutch from Italy
 ★Japanese SMC rotary joint.

★Import gripper bar chain.
 ★Pneumatic die locking device.
 ★High hardness, strength Ti-Al alloy gripper.
 ★Precise pressure adjust device.
 ★PLC and man-machine interface from Taiwan.
 ★Additional gripper 1set,cutting die 1set,die frame 1 set.

Delivery Section

★Automatic aligning device, 2 blowing devices ensure all the paper could be well delivered whether thin or thick.
 ★Delivery section with control panel, more human-friendly.

★Optoelectronic sensor ensure better Delivery.
 ★Automatic delivery board control system.
 ★Manual delivery device
 ★Main chain protection device
 ★Rolling back preventing device

Q1: Are you a manufacturer or a trading company?

A: Our shanghai office is mainly doing export. We have our own factory in Wenzhou, Zhejiang Province.

Q2. What is the machine warranty?

A: One year. After the warranty, we still provide technical support to buyer at low cost.

Q3. What is the production time while placing order?

A: Normally about 10-20 days.

Q4. What is the delivery time?

A: 15-30days after deposit.

Q5. Can your company handle shipping for customers?

A: Yes, just give us destination sea port or container yard.

Q6. Does the packing strong?

A: Yes. Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included..

Q7. How about the machine installation and training ?

A: 1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training. You shall pay the round trip air fare and accommodations, plus each technician charges USD100/per day.

Q8. Do you have machines in stock?

A: For standard model, we have a large quantity in stock. For special model, we need 20-30 days to produce it for you.

Q9. How can you assure the machines’ quality?

A: Each machine will be test running at least 24 hours before delivery to assure the quality. And during the warranty, we will give spare parts for free if machine has any problem.

Q10. Do you inspect machines or test running before packing?

A: Of course we do. We have QC department to debug the machine before packing. If you want to use specific material to do the test running, you need to pay for the cost of the material

Q11. What’s the payment term?

A: T/T 30% in advance, the balance shall be paid before delivery. We also accept payment by West Union or L/C at sight.

Q12. Do you accept factory visiting?

A: Warmly welcome for your visiting.

Q13. How many years are you in printing field?

A: Shanghai company is 12 years old, the factory is more than 20years.

Q14. How many clients do you have?

A: We have sold our machines to about 60 countries. We have agents in South Africa, Morocco and Italy.
