Brand Name : PRINTYOUNG
Model Number : DX1160ETU
Certification : CE
Place of Origin : Zhejiang, China
MOQ : 1 Set
Price : US 35000 ~ 43000 Set
Payment Terms : T/T
Supply Ability : 30 Set/Sets per Month
Delivery Time : 30 days
Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.
Condition : New
Type : Conventional Plate Processor
Voltage : 220 V
Applicable Industries : Manufacturing Plant, Printing Shops
Showroom Location : Egypt, Italy, Morocco, Algeria, South Africa
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Weight : 1400 KG
Warranty : 1 Year
Automatic Grade : Automatic
Dimension : 2400 * 1375 * 1090 mm
Resolution : 2400 dpi
Exposure Structure : External Drum
Max Plate Size : 1130 * 930 mm
Min Plate Size : 450 * 370 mm
Plate Thickness : 0.15 ~ 0.4 mm
Max Hanged Line : 300 lpi
FM Dots Output : 10um AM/FM Hybrid Screening
Repeatability : +/- 0.005 mm
Model | DX1160ET/U-I | DX1160ET/U-II | DX1160ET/U-III | DX1160ET/U-IV |
---|---|---|---|---|
Laser System | 830/405 nm LD 32 Channels | 830/405 nm LD 48 Channels | 830/405 nm LD 64 Channels | 830/405 nm LD 96 Channels |
Resolution | 2400 dpi / 1200 dpi (Optional) | |||
Output Speed (2400 dpi , 1030 * 800 mm , Online Plate Making) | 16 p/h | 22 p/h | 28 p/h | 37 p/h |
Output Speed (1200 dpi , 1030 * 800 mm , Online Plate Making) | 21 p/h | 28 p/h | 35 p/h | 45 p/h |
Exposure Structure | External Drum | |||
Max Plate Size | 1130 * 930 mm | |||
Min Plate Size | 450 * 370 mm | |||
Plate Thickness | Thermal (830 nm) 0.15 ~ 0.4 mm / UV (405 nm) 0.15 ~ 0.4 mm | |||
Max Hanged Line | 300 lpi | |||
FM Dots Output | 10um AM/FM Hybrid Screening | |||
Repeatability | +/- 0.005 mm | |||
Power Supply | AC 220V AC/50Hz ~ 60Hz 5kw (Single Phase) | |||

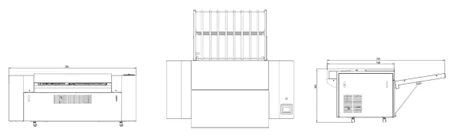

External Dimension | 2400 * 1375 * 1090 mm | |||
Weight | 1400 kg |
![]() |
DX1160ETU 2400 Dpi +/- 0.005 Mm Thermal & UV CTP Plates Making Machinery Images |
