PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking

Name: PRY106 Automatic Paper Die Cutting Machine With Stripping And Blanking
Brand: PRINTYOUNG
Price: 290000 USD

Buy cheap PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking product

Brand Name : PRINTYOUNG

Model Number : PRY-106

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 290000 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Type : Die-cutting Machine

Production Capacity : 6500sph

Max. workable width : 1060mm

Weight : 22000 kg

Voltage : 380V

Max. Sheet Size : 1060*760mm

Min. Sheet Size : 400*350mm

Paperboard : 0.2-1.5mm

Corrugated Board : ≤4mm (E,B F FLUTE)

Min. Gripper Edge : 9mm

Max. Die-Cutting Size : 1060*746mm

Inner Chase Size : 1124*788mm

Max. Pressure : 260tons

Steel Rules Height : 23.8mm

Contact Now

PRY-106 Automatic Die Cutting Machine

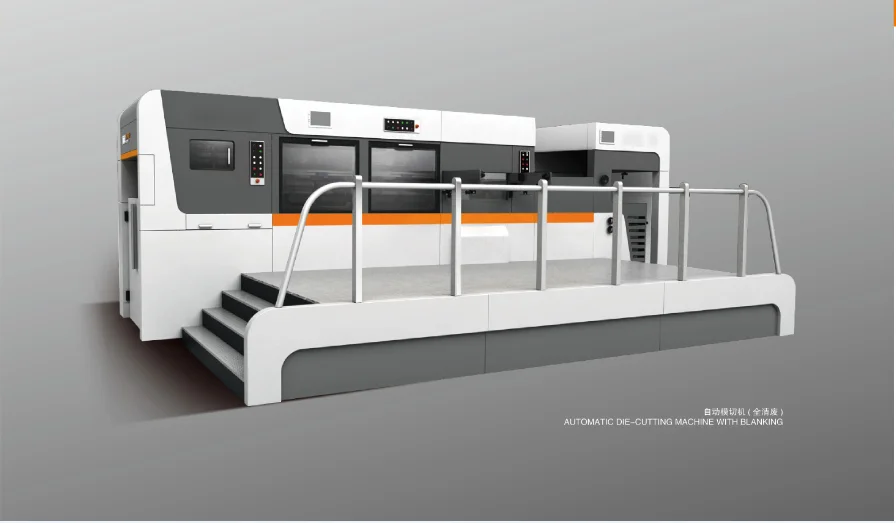

PRY-106 Automatic Paper Die Cutting Machine With Stripping And Blanking

Features

The new design of the stripping process brings the highest productivity,and the convenient operation decreases the workload significantly.

1.Automatic lubrication on main chain
2.Complete safety detection for both machine and operator
3.Multi language touch screen interface provides trouble shoot and self diagnose
4.Whole machine apply with CE certificate
5.CE safety operation standard

Technical Parameters

PRY-106 Automatic Die cutting Machine
Max. Sheet Size	1060×760mm
Min. Sheet Size	400×350mm
Paper Thickness	90gsm
Paperboard	0.2-1.5mm
Corrugated Board	≤4mm (E,B F FLUTE)
Min. Gripper Edge	9mm
Max. Die-Cutting Size	1060×746mm
Inner Chase Size	1124×788mm
Max. Pressure	260tons
Max. Speed	6500sph
Steel Rules Height	23.8mm
Main Motor Capacity	15kw
Total Power Capacity	28kw
Feeder Pile Height	1400mm
Delivery Pile Height	1200mm
Net Weight	22,000kg

Configuration

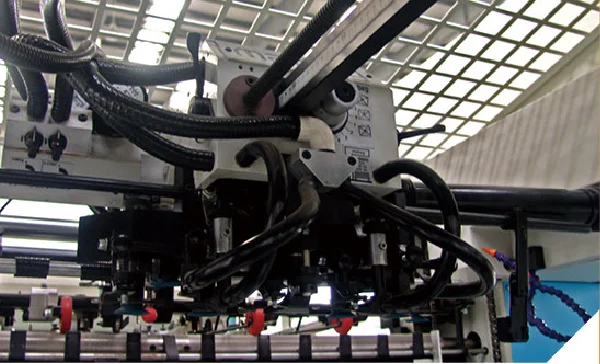

Feeder

The intelligent feeder system gives perfect sheet feeding,cuts feed errors on all the materials you work with every day include paper,card board and microflute.1.Conjugate cam mechanism for sheets feeding
Four lift suckers and four forward suckers,all suckers head angles are adjustable to handle different kinds of materials
Non-stop sheet loading
Automatic feeding table up and down
Manual adjust on front registration synchronized with auto running
Micro adjustable side lays with pull/push in one
Electric side lay detection
Two independent front lays with photoelectric detection
Safety detection on up/down limit of feeding pile
Pre-pile device
Front and side lays with photoelectric detection
Conforms to CE safety system

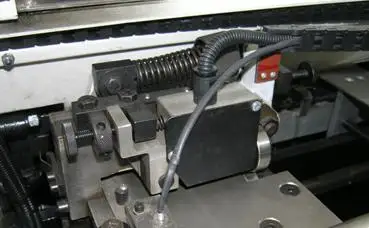

Impress Unit

State-of-the-art drive mechanism for steady and strong move of move table
State-of-the-art fix table
Pneumatic chase lock makes operation much easier
4mm Hardened cutting plate
Micrometric system provides micro adjustment on cutting plate
Pneumatic brake/clutch
Fly wheel unload mechanism assures silent and smooth driving
Servo controlled pressure adjustment assures short set time
Accurate reposition of the distance between the platens, less than 0.01mm
Digital pressure display
Center line system
Smart gripper bars,each bar is adjustable to secure accuracy
The position of each gripper finger could be adjusted according to jobs,and some jobs without front edge could be handled
Tri-point gripper bar registration provides high accuracy in round registrations
Segment gear indexing mechanism provides smooth and accuracy running
Torque clutch protects index system from concussion on gripper bar
Cam mechanism for gripper finger control assures sheet registration

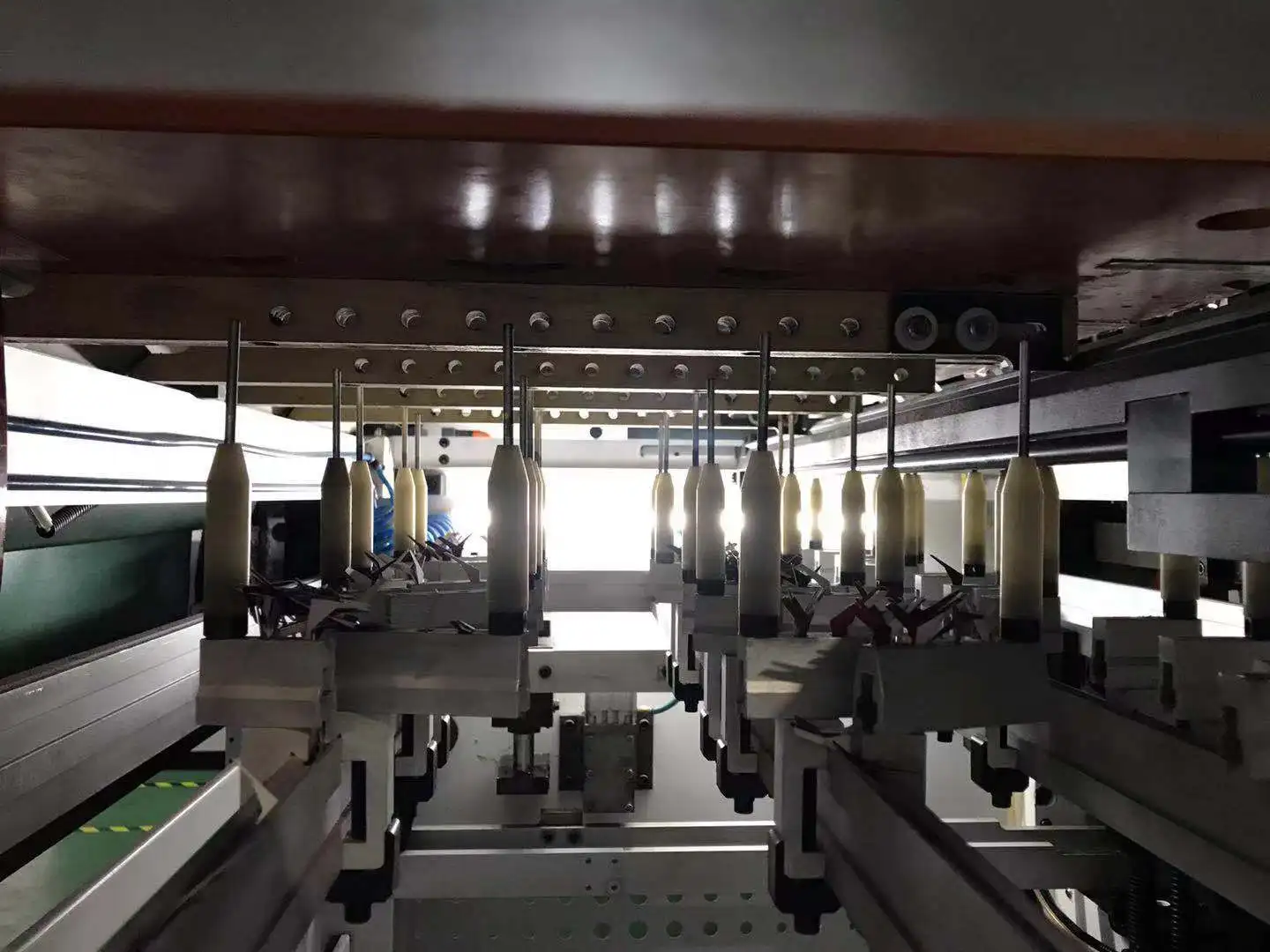

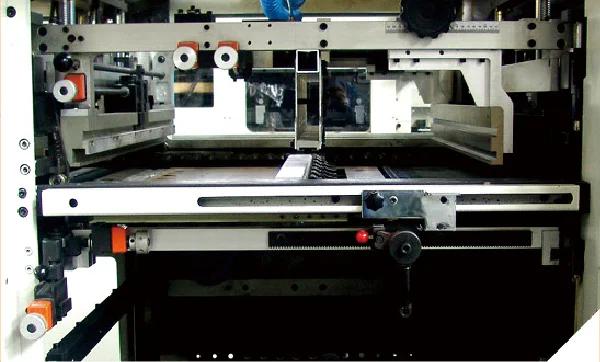

Stripping Unit

The stripping unit is designed to remove even the smallest pieces of waste.Using dedicated or universal tooling,the station is up and running in no time,delivering outstanding performance and quality,whatever the job.Quick lock system provides fast and easy makeready.1.3 chases stripping makes stripping action more proper
Stripping chase positioning system simplifies stripping pin and improves working efficiency
Center line system for easy job changeover
Upper and lower stripping frames can be pulled out for job set up and make ready
Upper stripping chase could be raised for easy operation
Either stripping pins or stripping tools are applicable

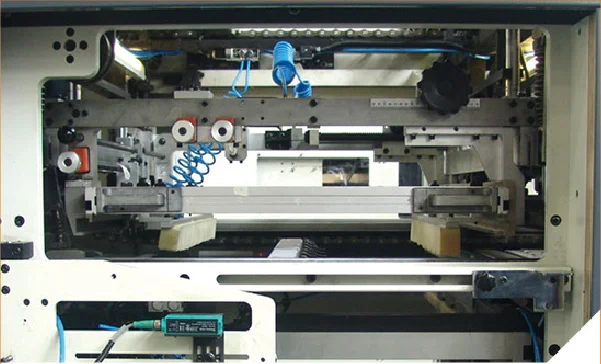

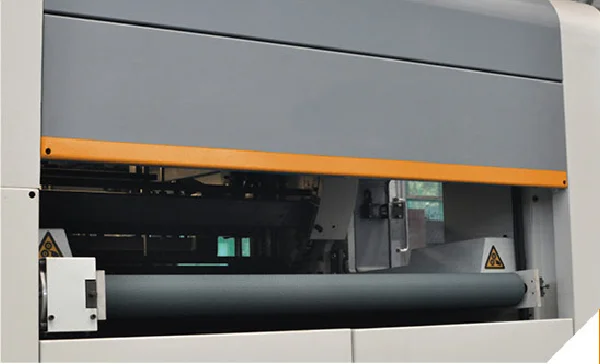

Blanking and Delivery Unit

The blank separation delivers both blank sheets and full sheets precisely.Functions such as continuous pile lowering and automatic sheet insertion to ensure perfectly stacked piles.1.Quick frame lock provides short make ready time for both new job and repeat job
 2.Full size sheet inserter for both counter and blank pile stabilize
 3.Non stop pile changing

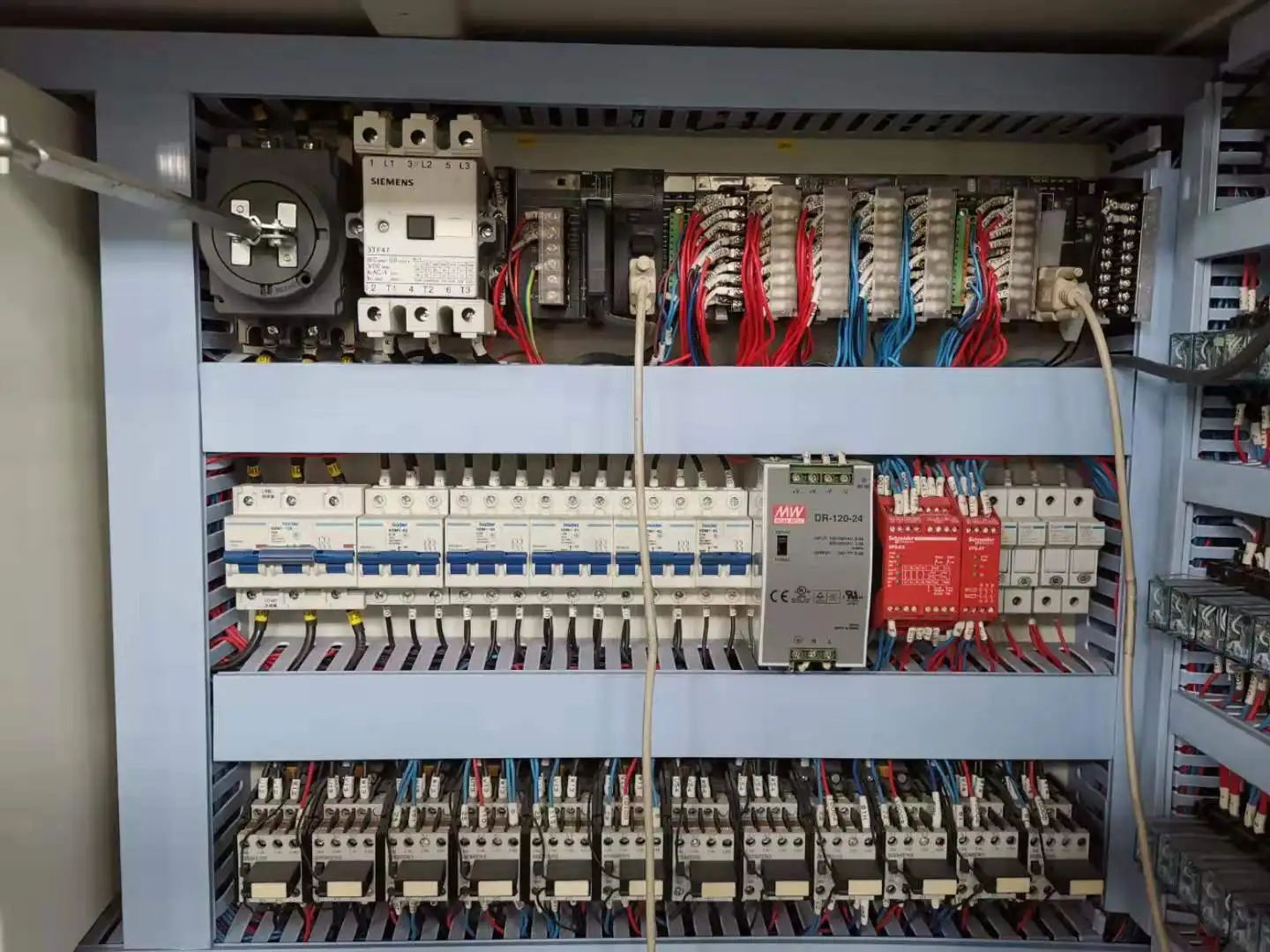

Electrics

PLC control gives accurate machine running control and self diagnose
Touch screen HMI offers convenient operation setting and machine monitor
Selected electric elements assures stable working

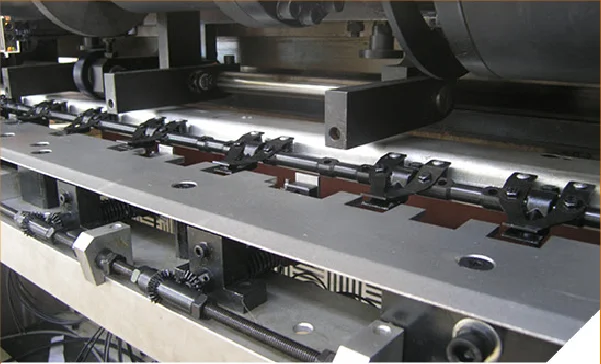

Gripper Bars

Gripper bars are made of high-performance 6005 aluminum,and seal type design by new technology.Gripper pads are installed at the
 lower edge of gripper body,rotary open,which brings better salability during the die-cutting and stripping process and enhanced working life of gripper pads.

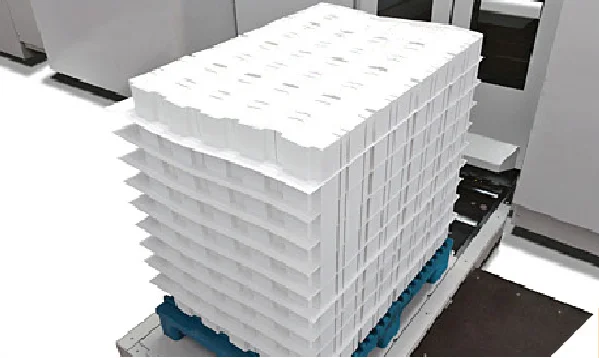

Finished Products

Finished products can be well organized according to the requirements of customer into a pile,and be transferred to the driver
 side by transfer track safely for next procedure.

Automatic Delivery Pile Transfer (Optional)

Realising automatic transfer between empty and full loaded pallets at the machine's delivery,reduces manual intervention and
 ensures non-stop production.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free;

2)We can send technicians (engineers) to your factory for installation and training.

You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.

And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.

If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
